1.6 Titanium Implants Systems



TIN - Bone-Plates 1.6 System

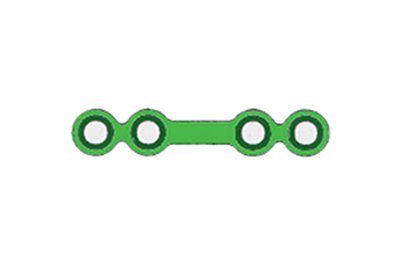

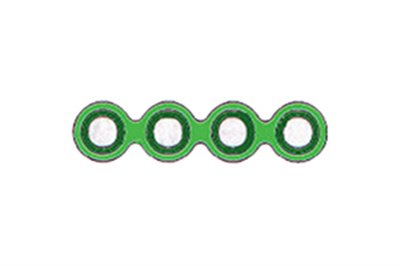

Straight Plate

4 hole / without stem
16.000.04

Straight Plate

4 hole /6 mm stem
16.002.04

Straight Plate

4 hole / 8 mm stem
16.004.04

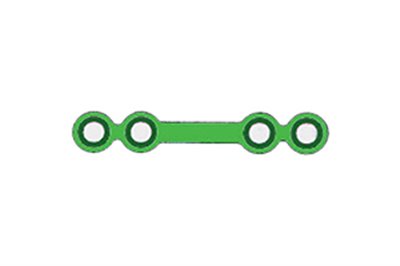

Straight Plate

4 hole / 10 mm stem
16.006.04

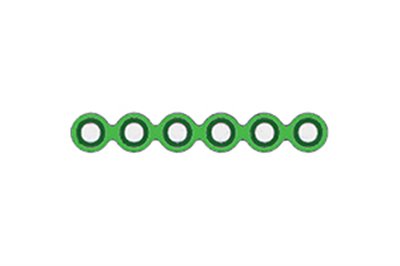

Straight Plate

6 hole / without stem
16.010.06

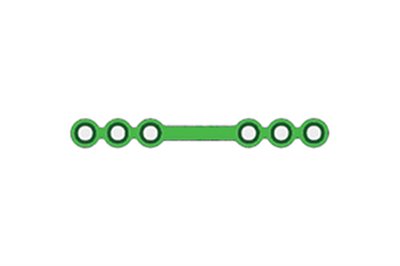

Straight Plate

6 hole / 12 mm stem
16.014.06

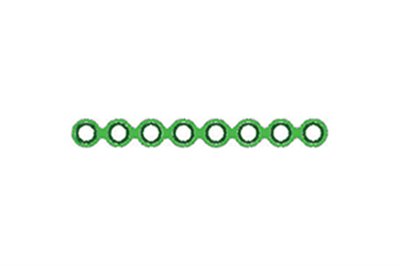

Straight Plate

8 hole / without stem
16.020.08

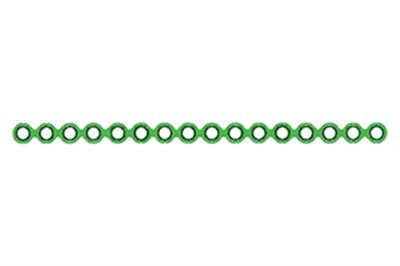

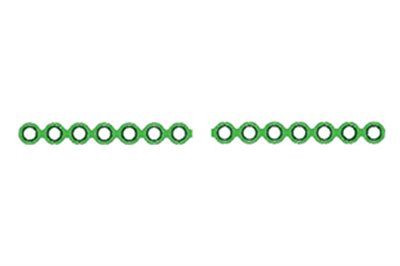

Straight Plate

16 hole / without stem
16.020.16

Straight Plate

18 hole / without stem
16.020.18

Straight Plate

30 hole / without stem
16.020.30

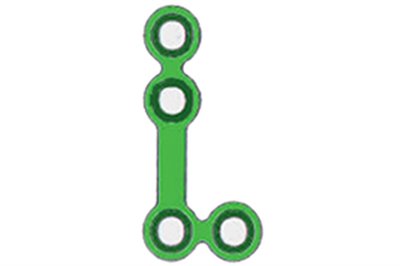

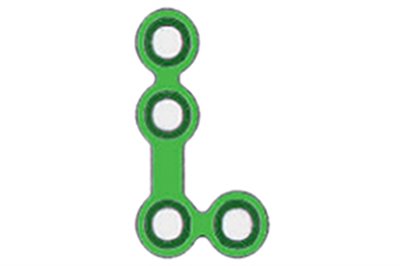

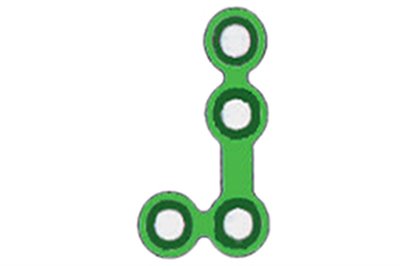

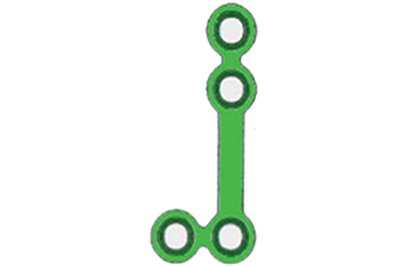

L Plate

left / 6 mm stem
16.030.01

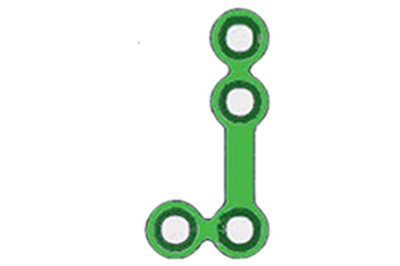

L Plate

right / 6 mm stem
16.030.02

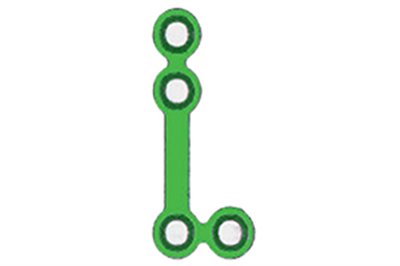

L Plate

left / 8 mm stem
16.032.01

L Plate

right / 8 mm stem
16.032.02

L Plate

left / 10 mm stem
16.034.01

L Plate

right / 10 mm stem
16.034.02

T Plate

6 hole / without stem
16.050.01

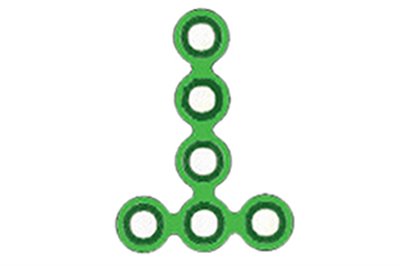

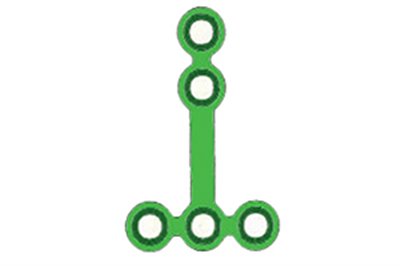

T Plate

5 hole / 10 mm stem
16.050.05

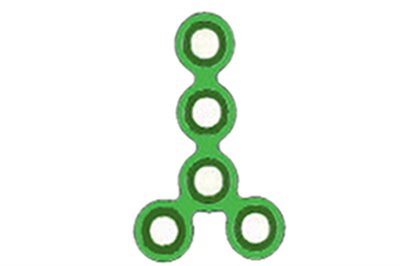

Y Plate

5 hole / without stem
16.060.01

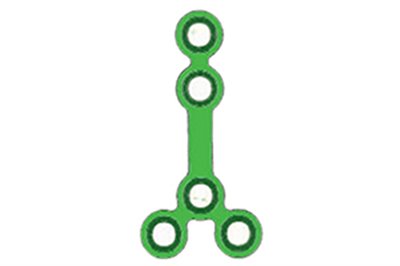

Y Plate

5 hole / 8 mm stem
16.060.02

Y Plate

5 hole / 12 mm stem
16.060.04

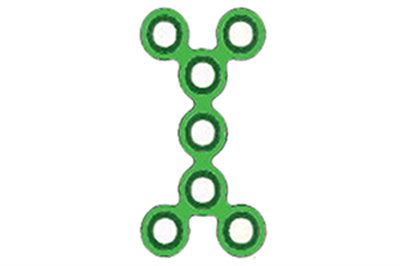

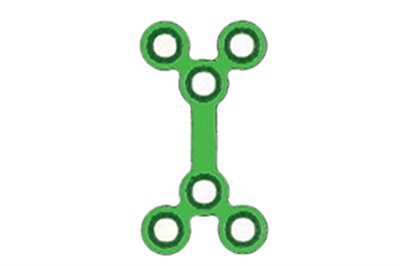

Double Y

Plate 6 hole / without stem
16.070.01

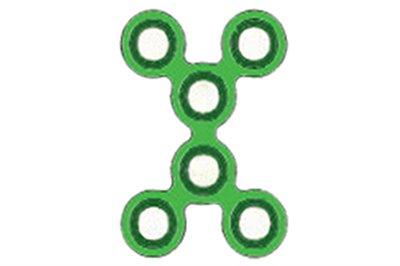

Double Y

7 hole / without stem
16.070.02

Double Y

6 hole / 8 mm stem
16.070.04

Orbital Plate

6 hole
16.087.06

Orbital Plate

8 hole
16.087.08

Orbital Plate

10 hole
16.087.10

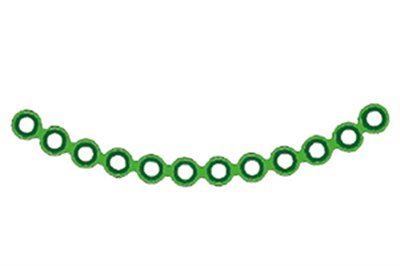

Orbital Plate

12 hole
16.087.12

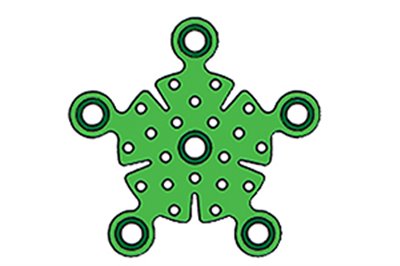

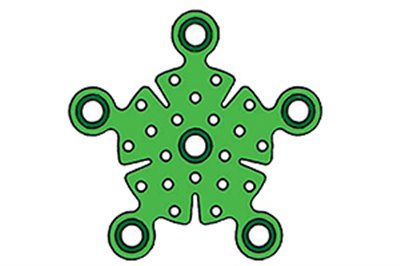

Burr Hole Plates

12,5 mm
16.100.13

Burr Hole Plates

18,5 mm
16.100.18

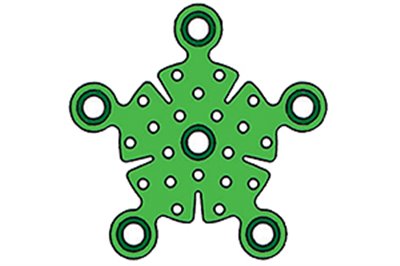

Burr Hole Plates

22 mm
16.100.22

Neuro Plate

short
16.110.02

Neuro Plate

long
16.110.03

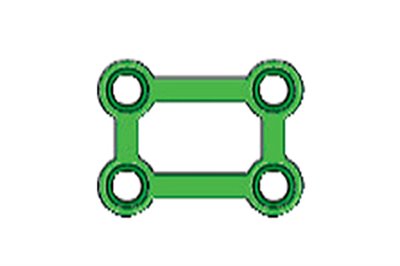

Quadro-Plate

2x2 Hole
16.120.04

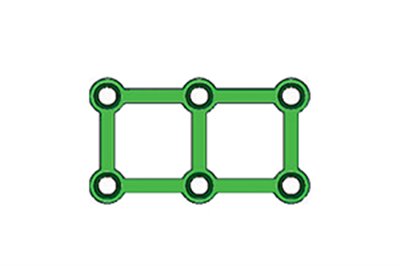

Quadro-Plate

3x2 Hole
16.120.06

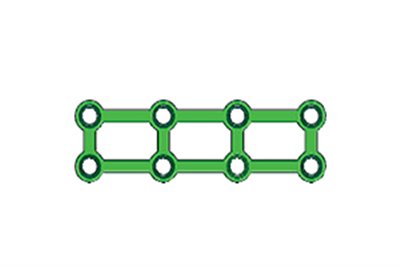

Quadro-Plate

4x2 Hole
16.120.08

Quadro-Plate

6 x 4 hole
16.120.24

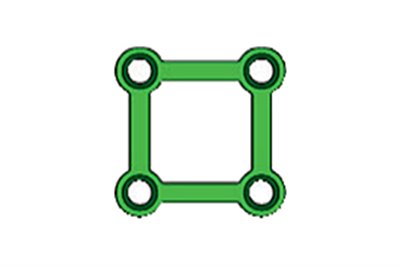

Rectangular Plate

2 x 2 hole
16.130.04

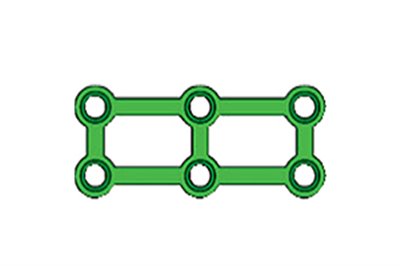

Rectangular Plate

2 x 3 hole
16.130.06

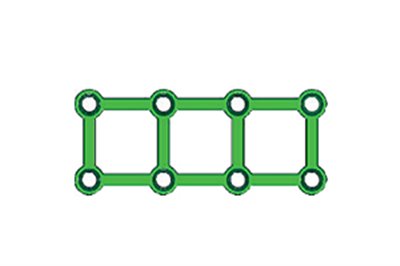

Rectangular Plate

2 x 4 hole
16.130.08

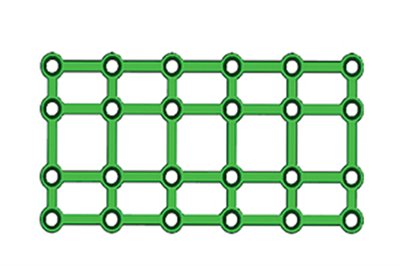

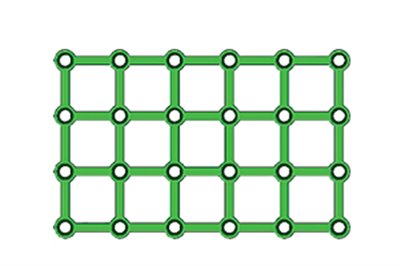

Rectangular Plate

6 x 4 hole
16.130.24

Neuro-Sub-Temporale Plate

small
16.156.01

Neuro-Sub-Temporale Plate

large
16.156.02

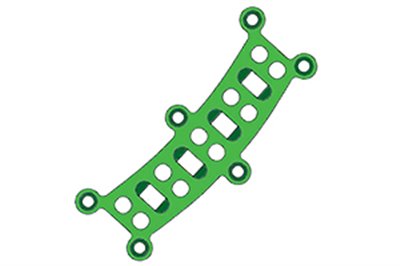

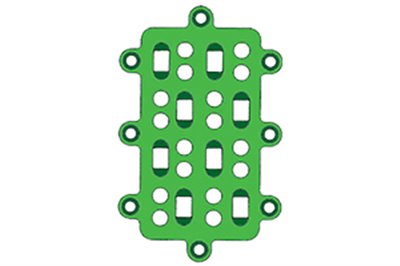

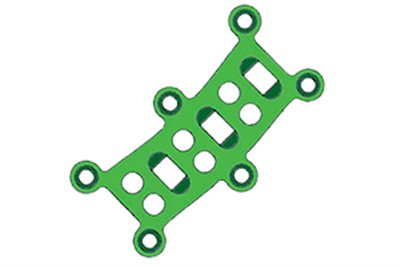

Neuro Gap Plate

small
16.150.01

Neuro Gap Plate

medium
16.150.02

Neuro Gap Plate

large
16.150.03

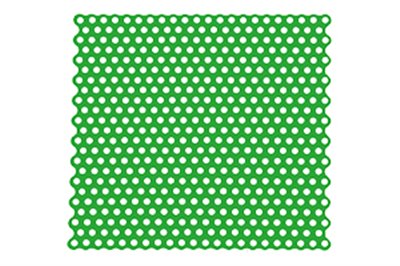

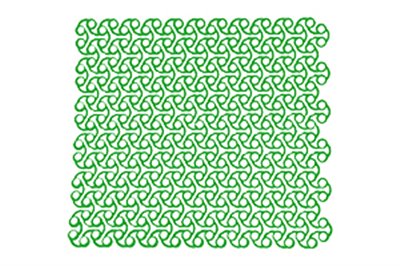

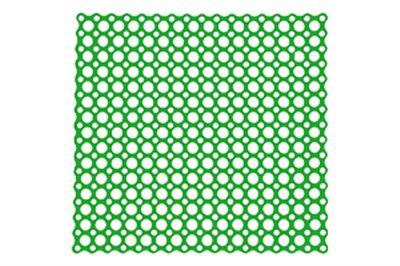

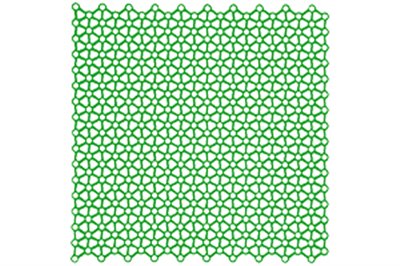

TITANIUM MESH 1.6 System

50 x 50x 0.6 mm - 200 x 200 x 06 mm

50 x 50x 0.6 mm - 200 x 200 x 06 mm

50 x 50x 0.6 mm - 200 x 200 x 06 mm

50 x 50x 0.6 mm - 200 x 200 x 06 mm

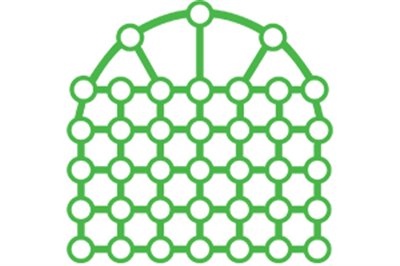

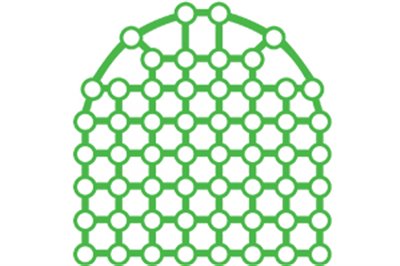

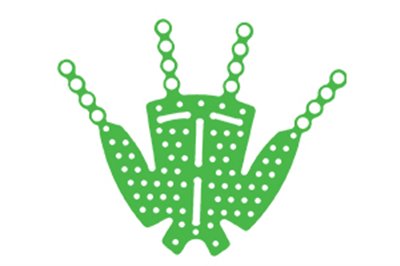

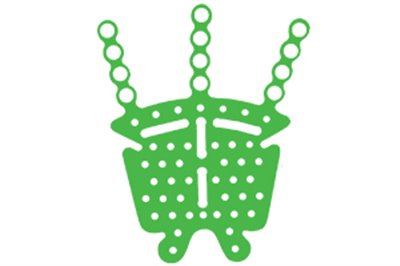

Anatomic Orbital Floor Plate

16.200.05

16.201.05

16.300.05

16.301.05


TIN - Bone-Screws 1.6 System

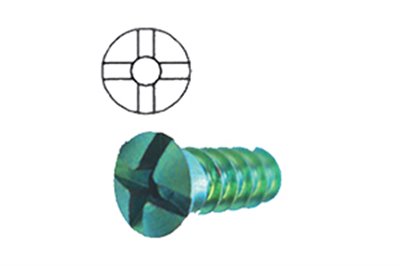

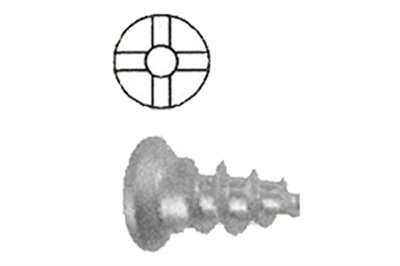

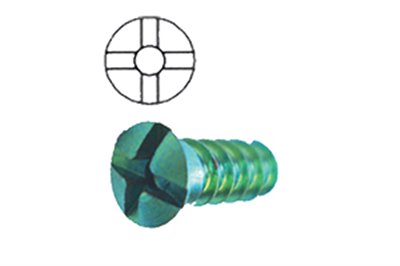

Cross - Drive - Screw (10/PK)

1,6 x 0.3 mm - 1,6 x 15 mm

Emergencyscrews

1,9 x 5 mm - 1,9 x 7 mm

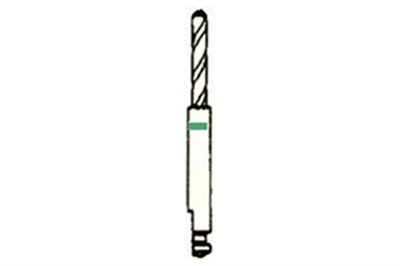

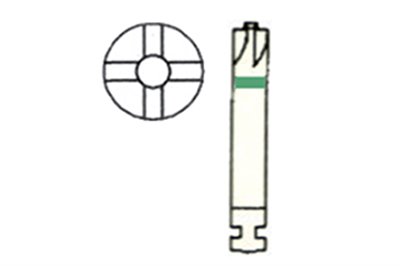

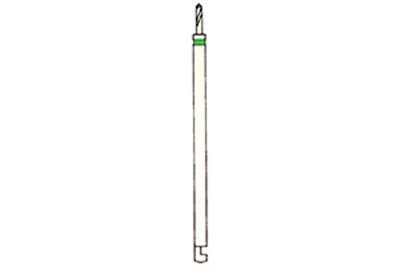

ESD - Easy - Self - Drilling - Screw

Cross-Drive (5/PK)

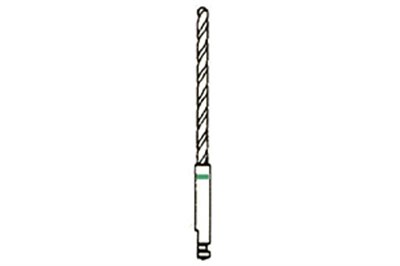

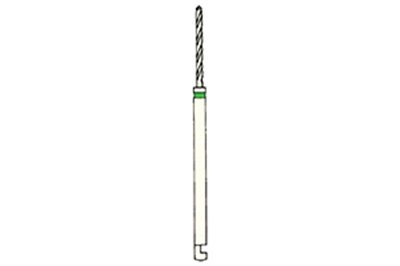

8mm Stop
dental plug
16.853.08

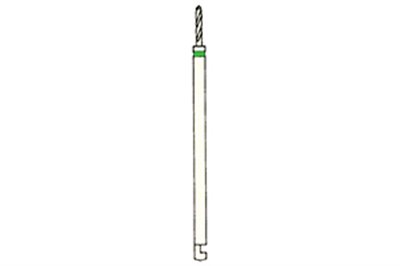

10mm Stop
dental plug
16.853.10

15mm Stop
dental plug
16.853.12

4mm Stop
Stryker plu / 16.850.04 g
dental plug / 16.854.04

5mm Stop
Stryker plug / 16.850.05
dental plug / 16.854.05

8mm Stop
Stryker plug / 16.850.08
dental plug / 16.854.08

15mm Stop
Stryker plug / 16.850.15
dental plug / 16.854.15


Instrumentation 1.6 System

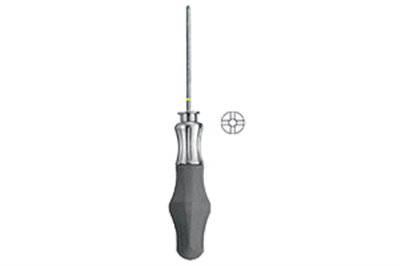

Screwdriver Removable Blade

CROSS Drive / 16.804.16

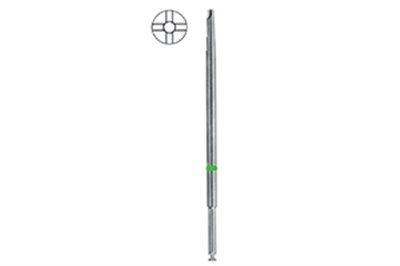

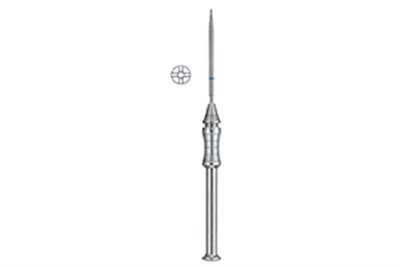

Screwdriver Removable Blade

CROSS Drive / 16.802.15

Replacement blade

CROSS Drive /16.802.23

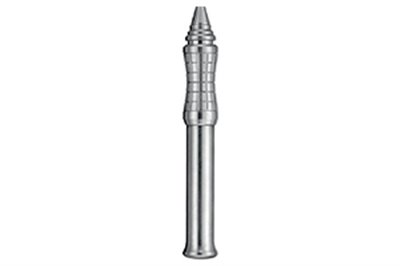

Handle Screwdriver

16.815.02

Holding Device

16.804.21

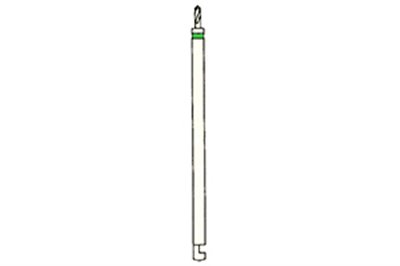

blade

Contra-Angle / dental plug
CROSS Drive /16.806.19

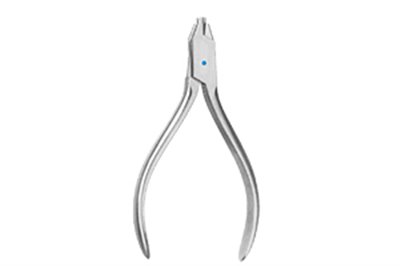

Plate

Bending Plier 12,5 cm
12.820.12

Aderer mod. Bending Plier

12,5 cm
16.822.12

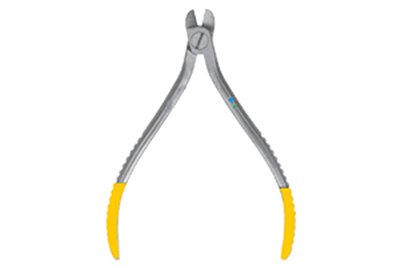

TC Plate Cutter

11 cm
16.824.11

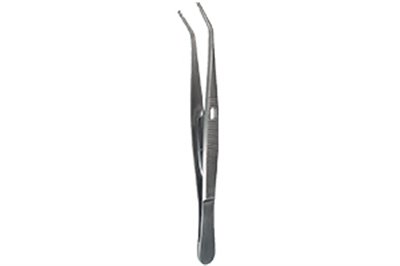

Plate/Screw Holding-Forceps

15,5 cm
20.822.18

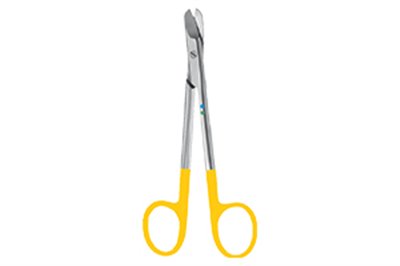

TC Plate +Mesh Scissor

14,5 cm
M.898.14

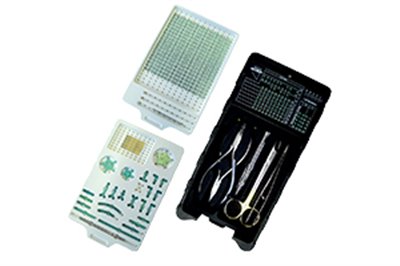

COMBO IMPLANT MKG

1,6 System (empty)
16.800.00

COMBO IMPLANT NEURO

1,6 System (empty)
16.800.01

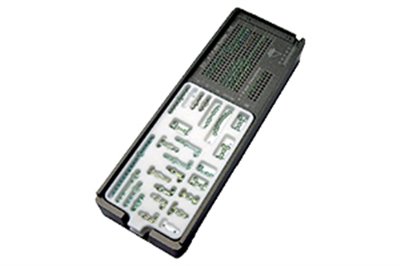

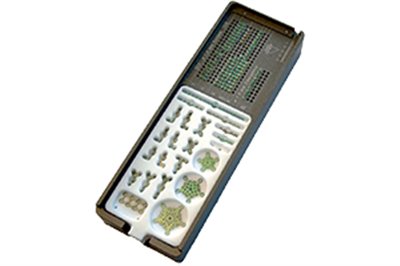

VARIO Implants and Instruments Tray

1,6 System (empty)
16.798.00

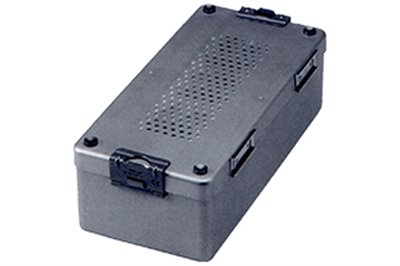

STERELIZING CONTAINER

300 x 140 x 100 mm
12.800.03

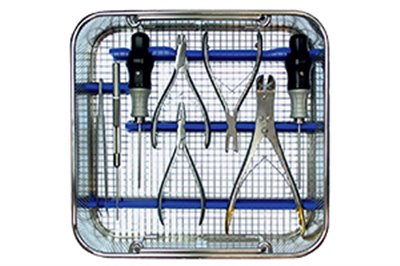

INSTRUMENT TRAY

1,2 / 1,6 System
16.802.01
