2.3 Titanium Implants Systems



Fracture 2.3 System

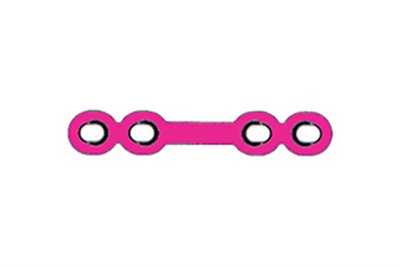

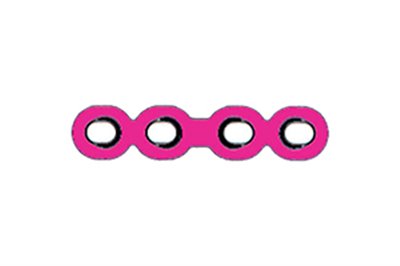

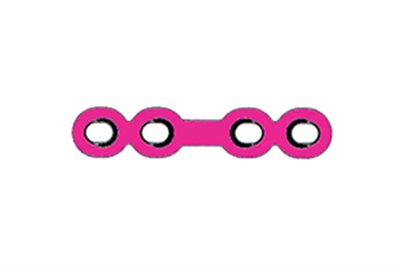

4 hole plate

short stem
23.000.04

4 hole plate

medium stem
23.002.04

4 hole plate

long stem
23.004.04

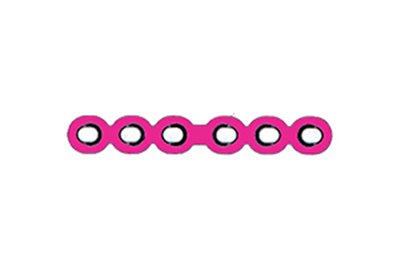

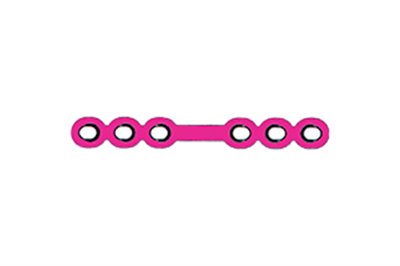

6 hole plate

short stem
23.000.06

6 hole plate

long stem
23.004.06

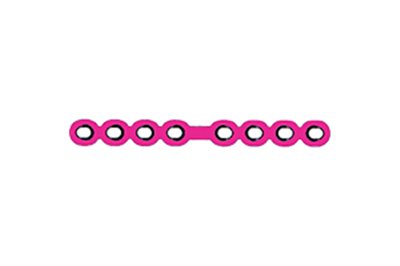

8 hole plate

medium stem
23.002.08

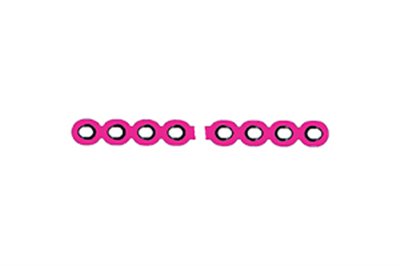

14 hole plate

without stem
23.000.14

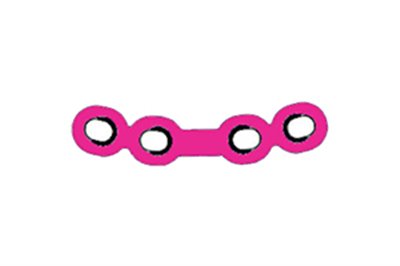

4 hole plate, C-shape

medium stem
23.021.04

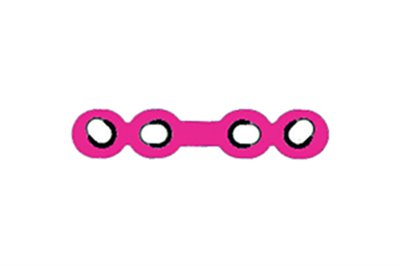

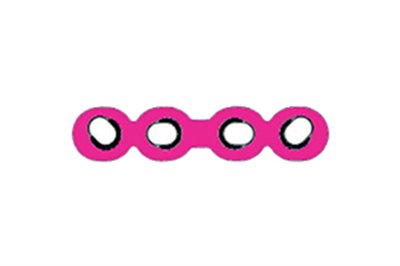

4 hole plate for alveolar compression

short stem
23.010.04

4 hole plate for alveolar compression

medium stem
23.012.04


MINI - Bone-Screws 2.3 System

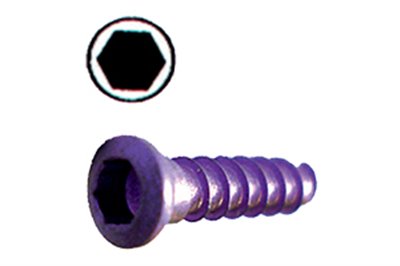

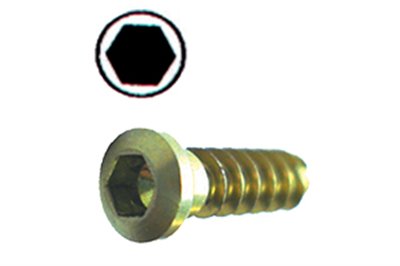

2.3mm HEX-Screw (5/PK)

2.3mm x 6mm - 2.3mm x 22mm

2.7mm Emergency HEX-Screw (5/PK)

2.7mm x 6mm - 2.7mm x 22mm

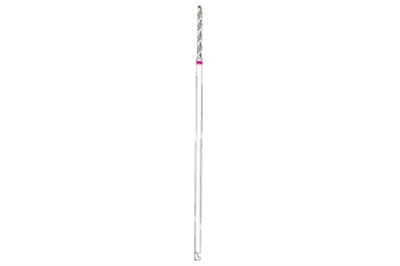

Twist Drill

for
1,8 mm


Instrumentation 2.3 System

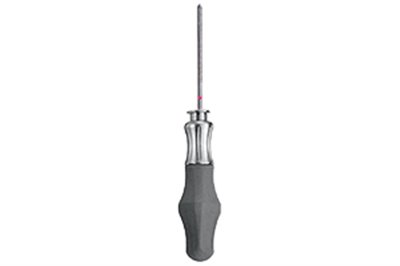

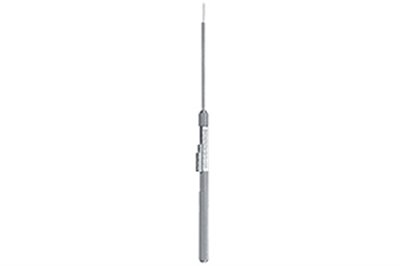

Screwdriver

removable blade
HEX Drive / 27.810.20

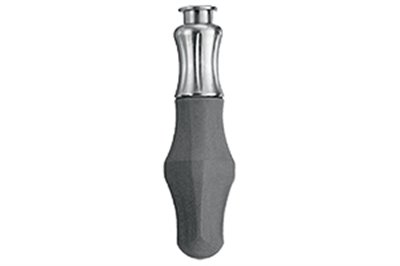

Handle

removable
20.815.01

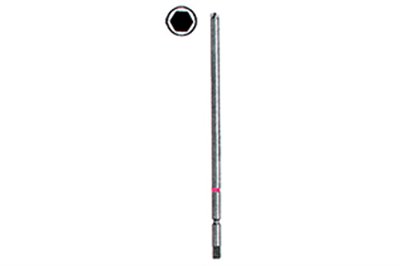

Blade

HEX-Drive
2.3/2.7 System / 23.810.24

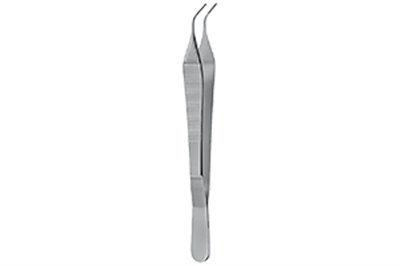

Plate and screw

holding Forceps / 15 cm
27.822.14

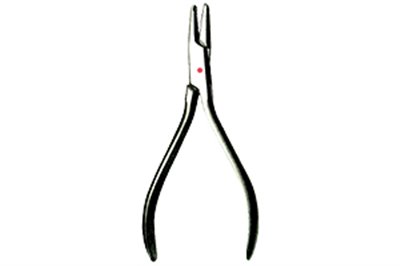

Plate bending plier

with pin
23.820.13

Depth

Gauge
20.830.21

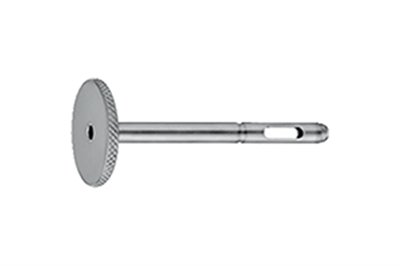

Handle for transbuccal

23.840.01

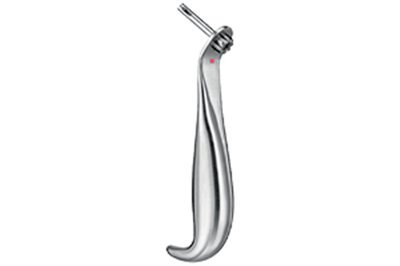

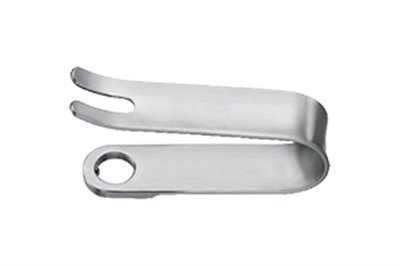

Cheek retraktor

23.840.04

Drill Guide centric

23.840.03

Drill Guide excentric

23.840.05

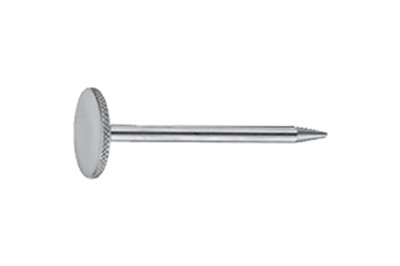

Trocar

23.840.02

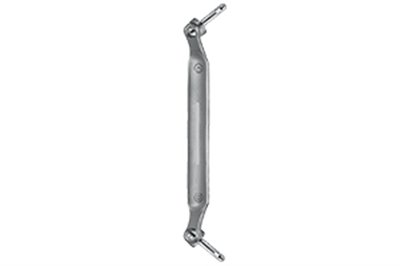

Drill Guide Double End

Centric / Excentric
23.842.00

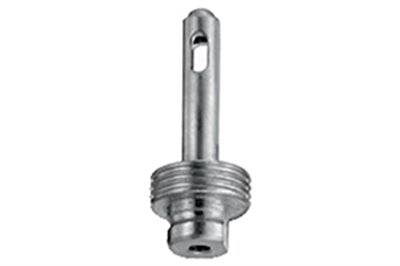

Drill Guid insert centric

23.842.02

Drill Guid insert excentri

23.842.03

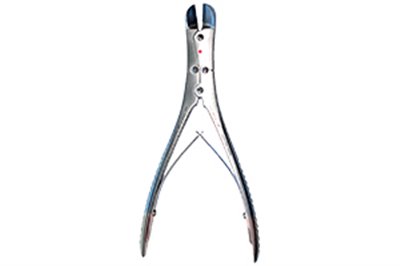

Plate Cutter TC

22,5cm
23.844.22


Instrumentation 2.3 System

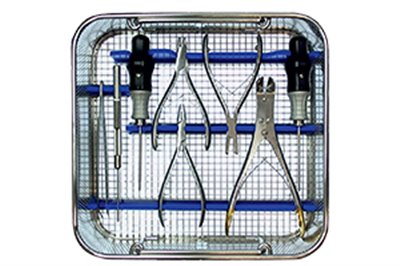

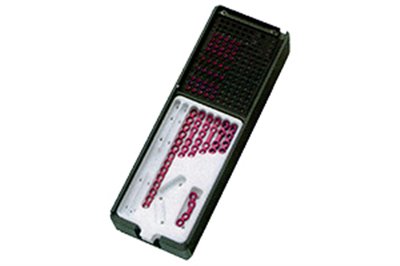

Instrument Tray

for 2.3 System (empty)
23.800.01

Combo Implant

2.3 System (empty)
23.802.00

Sterilizing Container

285x280x150 mm
23.800.04
