2.0 Titanium Implants Systems



MINI - Bone-Plates 2.0 System

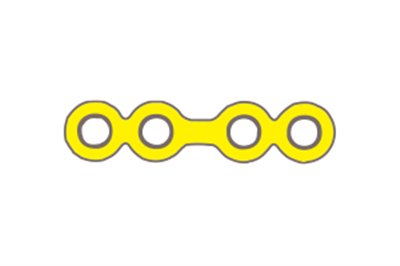

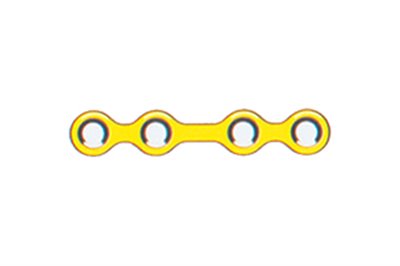

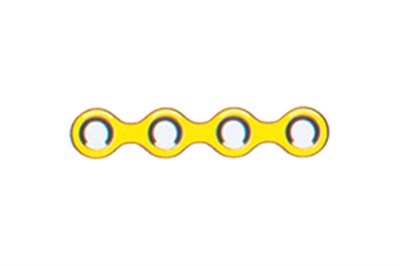

Straight Plate

4 hole / without stem
M: 20.000.04 / L: 20.200.04

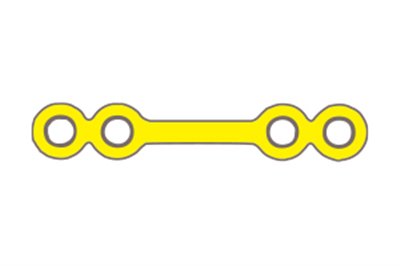

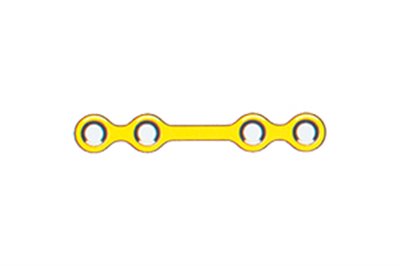

Straight Plate

4 hole / 6 mm stem
M: 20.002.04 / L: 20.202.04

Straight Plate

4 hole / 8 mm stem
M: 20.006.04 / L: 20.206.04

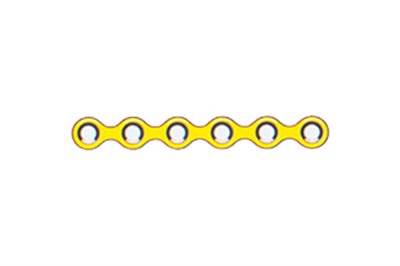

Straight Plate

6 hole / without stem
M: 20.000.06 /L: 20.200.06

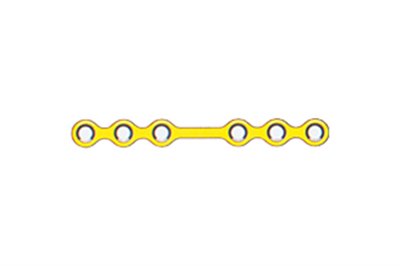

Straight Plate

6 hole / without stem
M: 20.004.06 / L: 20.204.06

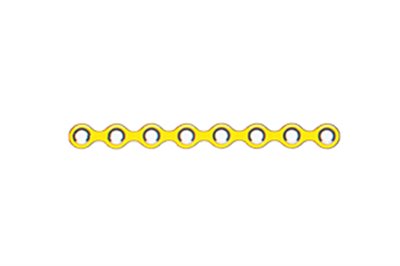

Straight Plate

8 hole /without stem
M: 20.000.08 / L: 20.200.08

Straight Plate

10 hole / without stem
M: 20.000.10 / L: 20.200.10

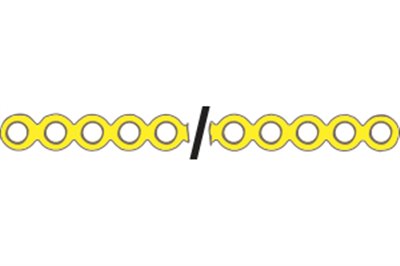

Straight Plate

16 hole / without stem
M: 20.000.16 / L: 20.200.16

Straight Plate

20 hole / without stem
M: 20.000.20

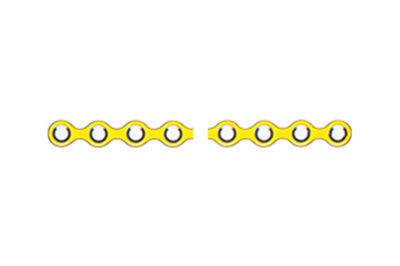

Straight Plate

40 hole / without stem
M: 20.000.40

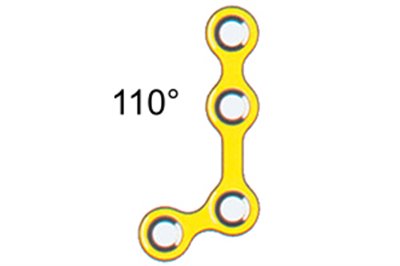

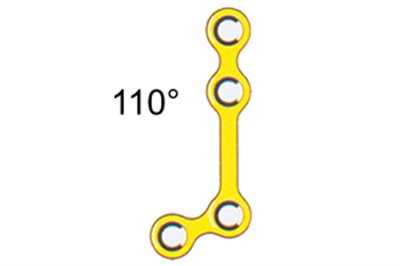

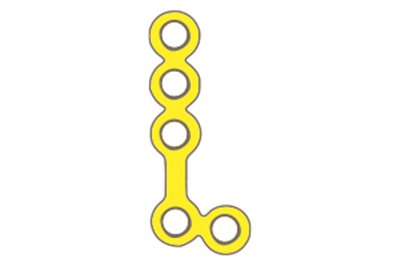

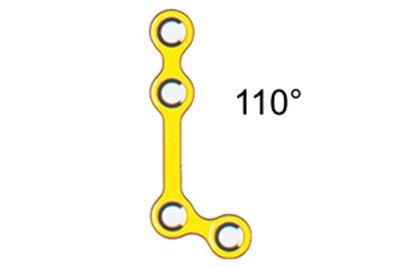

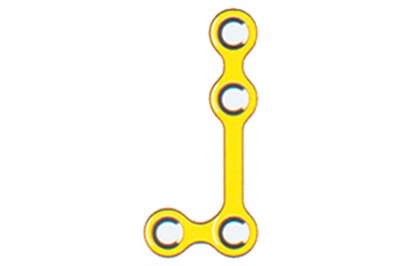

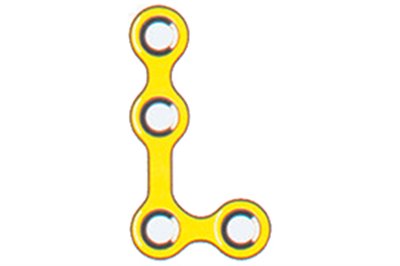

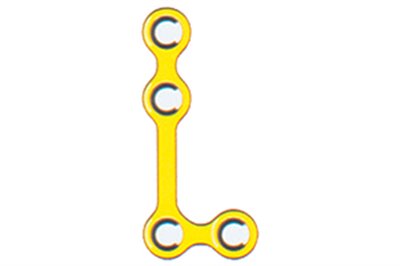

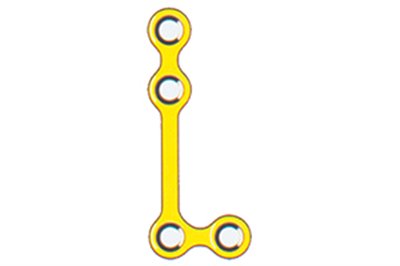

L Plate

left / without stem
M: 20.030.01 /L: 20.230.01

L Plate

right / without stem
M: 20.030.02 / L: 20.230.02

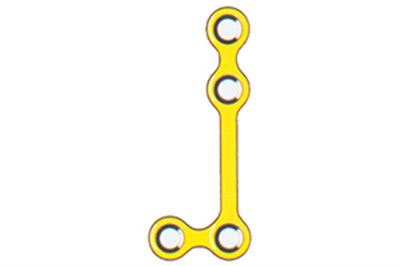

L Plate

left / short stem
M: 20.032.01 / L: 20.232.01

L Plate

right / short stem
M: 20.032.02 / L: 20.232.02

L Plate

left / medium stem
M: 20.034.01 / L: 20.234.01

L Plate

right / medium
M: 20.034.02 /L: 20.234.02 stem

L Plate

left / long stem
M:20.036.01

L Plate

right / long stem
M: 20.036.02

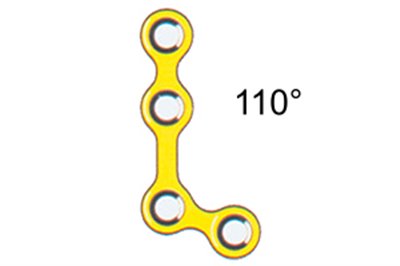

L Plate

left / short stem
M: 20.037.01 / L: 20.237.01

L Plate

right / short stem
M: 20.037.02 / L: 20.237.02

L Plate

left / medium stem
M: 20.038.01 / L: 20.238.01

L Plate

right / medium stem
M: 20.038.02 / L: 20.238.02

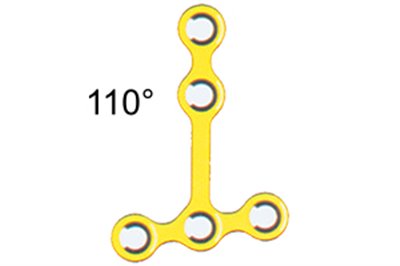

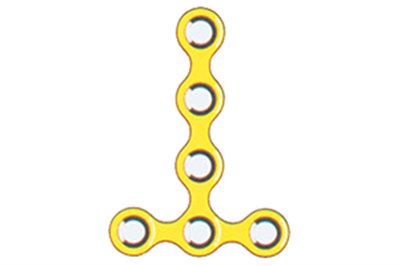

T Plate

6 hole / without stem
M: 20.050.01 / L: 20.250.01

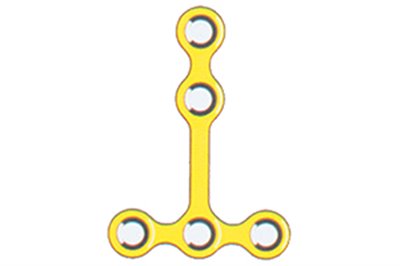

T Plate

5 hole / long stem
M: 20.052.02 / L: 20.252.02

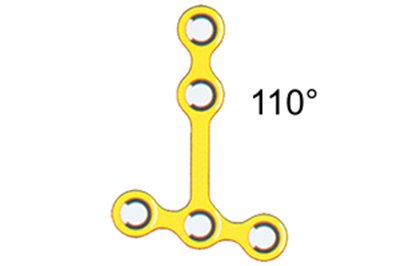

T Plate

5 hole / long stem
M: 20.056.01 / L: 20.256.01

T Plate

5 hole / long stem
M: 20.056.02 / L: 20.256.02

Y Plate

5 hole / without stem
M: 20.060.01 / L: 20.260.01

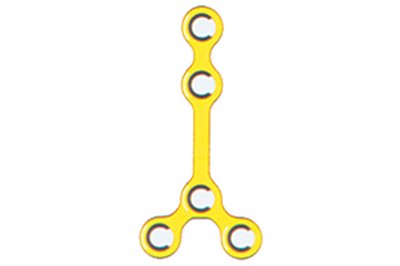

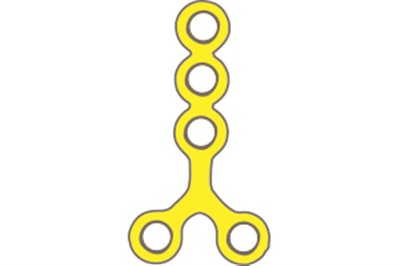

Y Plate

5 hole / long stem
M: 20.060.04 / L: 20.260.04

Double Y Plate

6 hole / without stem
M: 20.070.01 / L: 20.270.01

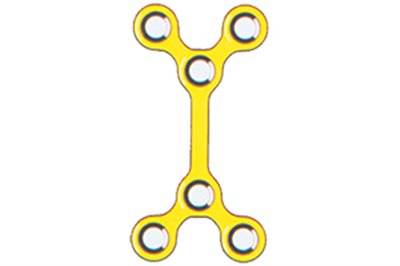

Double Y Plate

6 hole / long stem
M: 20.070.02 / L: 20.270.02

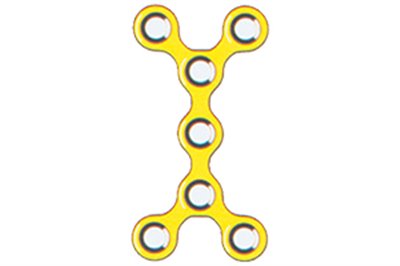

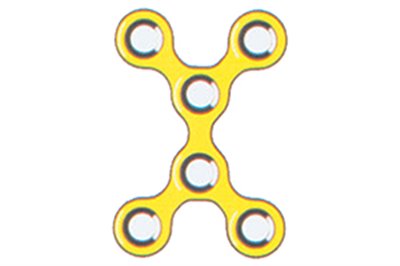

Double Y Plate

7 hole / without stem
M: 20.070.06 / L: 20.270.06

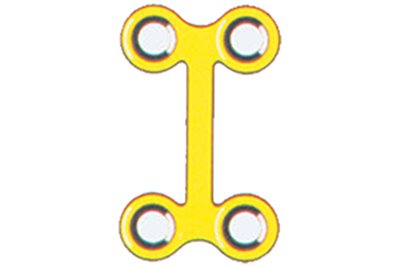

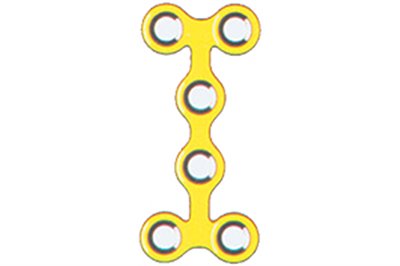

Double T Plate

4 hole / long stem
L: 20.276.04

Double T Plate

6 hole / without stem
L: 20.278.04

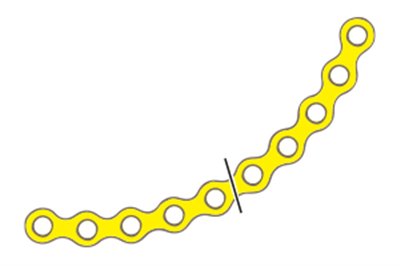

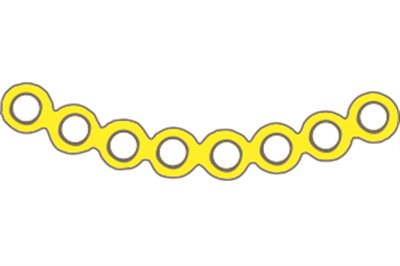

Orbital Plate

6 hole
M: 20.087.06 / L: 20.287.06

Orbital Plate

8 hole
M: 20.087.08 / L: 20.287.08

Orbital Plate

10 hole
M: 20.087.10 / L: 20.287.10

Orbital Plate

12 hole
M: 20.087.12 / L: 20.287.12

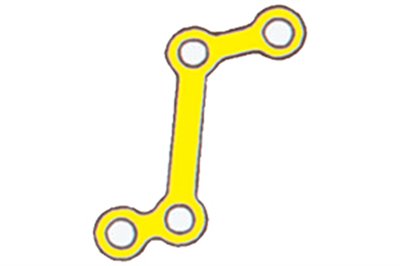

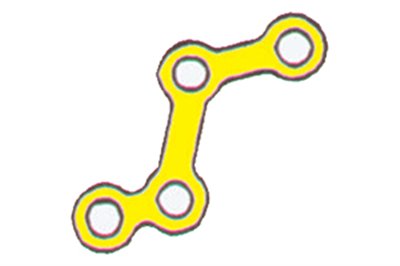

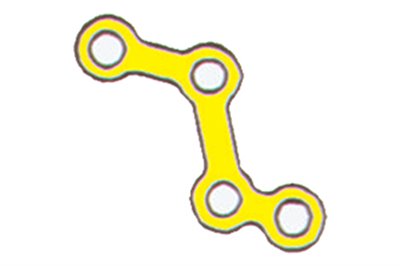

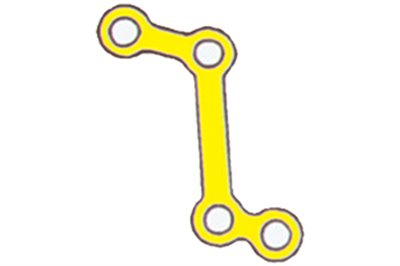

Z Plate

regular / without stem
L: 20.282.01

Z Plate

regular / without stem
L: 20.282.02

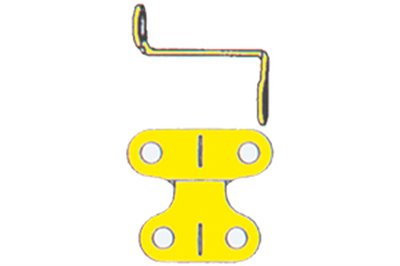

Z Plate

long / 8 mm stem
L: 20.282.03

Z Plate

long
L: 20.282.04

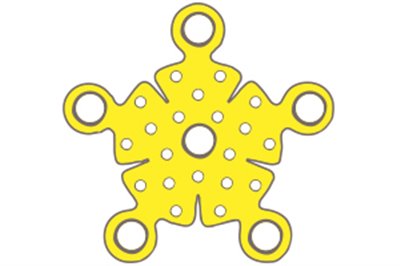

Burr Hole Plate

12,5mm
L: 20.100.13

Burr Hole Plate

18,5 mm
L: 20.100.18

Burr Hole PlatePaulus Chin Plate



MINI - Bone-Plates 2.0 System

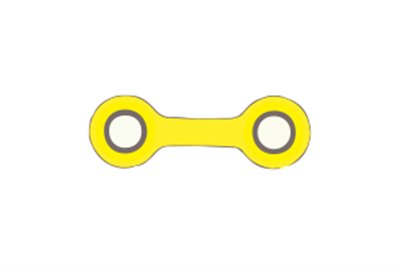

Straight Plate

2 hole
20.110.02

Straight Plate

4 hole / with short stem
20.302.04

Straight Plate

4 hole / with long stem
20.306.04

Straight Plate

30 hole / without stem
20.300.20

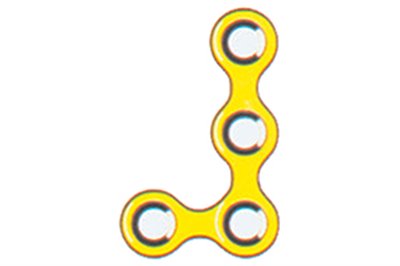

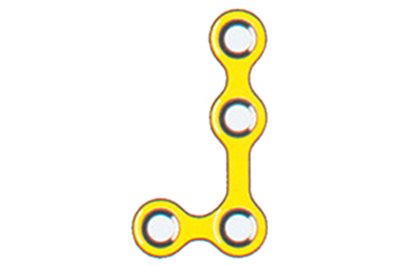

L Plate

left / 5 hole
20.334.11

L Plate

right / 5 hole
20.334.12

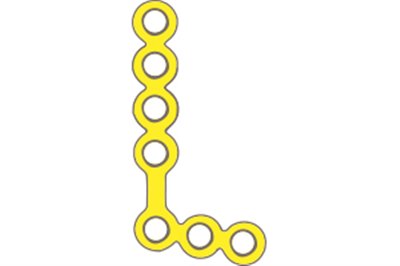

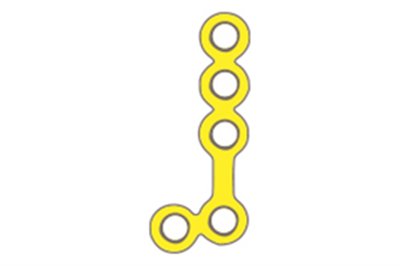

L Plate

left / 7 hole
20.334.21

L Plate

right / 7 hole
20.334.22

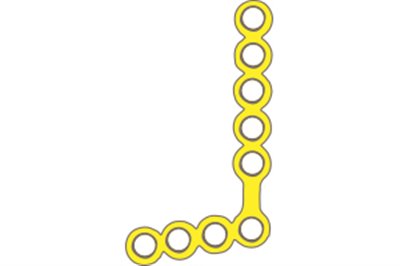

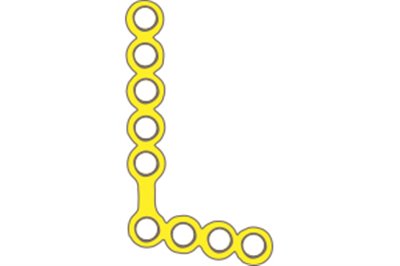

L Plate

left / 9 hole
20.334.31

L Plate

right / 9 hole
20.334.32

T Plate

4 hole
20.350.04

T Plate

8 hole
20.350.08

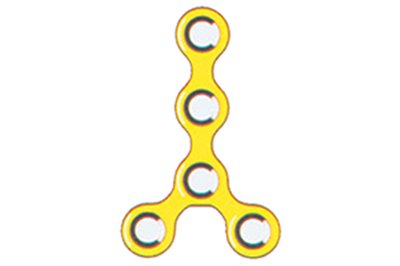

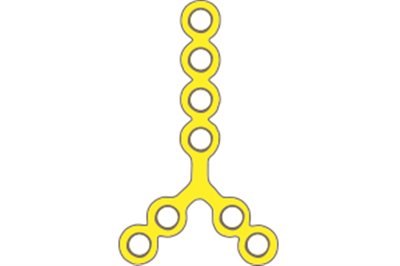

Y Plate

5 hole
20.360.05

Y Plate

8 hole
20.360.08

Double Y Plate

8 hole
20.370.08

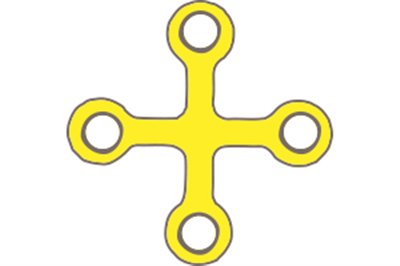

X Plate

4 hole
20.374.04

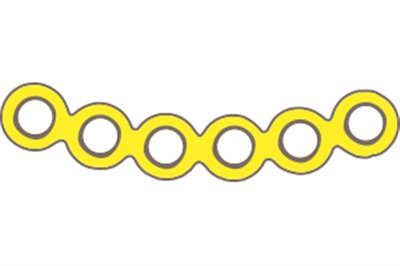

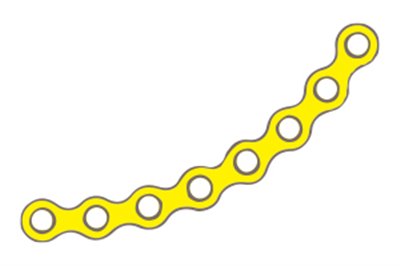

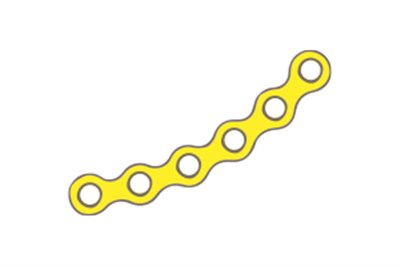

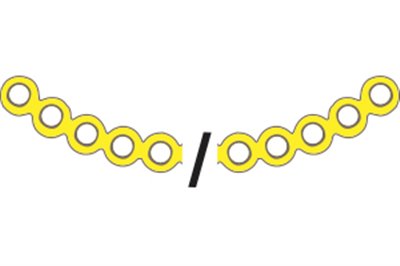

Orbital Plate

6 hole
20.387.06

Orbital Plate

8 hole
20.387.08

Orbital Plate

10 hole
20.387.10

Orbital Plate

12 hole
20.387.12


MINI - Bone-Plates 2.0 System

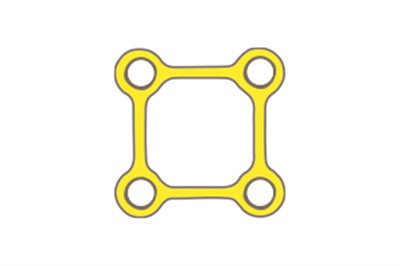

Quadro Plate

2x2 Hole
M : 20.120.04 / L: 20.320.04

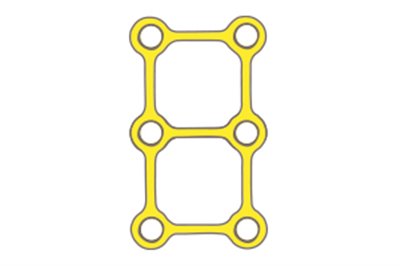

Quadro Plate

3x2 Hole
M : 20.120.06 / L: 20.320.06

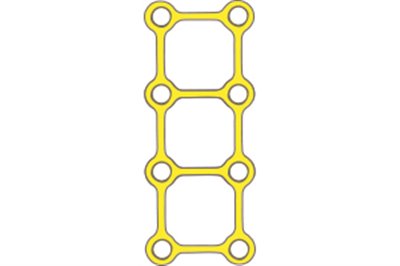

Quadro Plate

4x2 Hole
M : 20.120.08 / L: 20.320.08

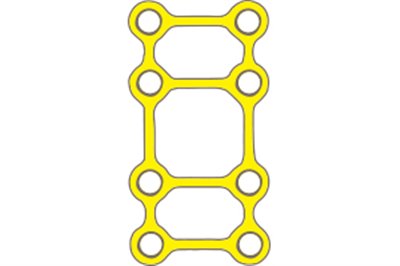

Quadro Plate

4x2 Hole
M : 20.126.08 / L: 20.326.08

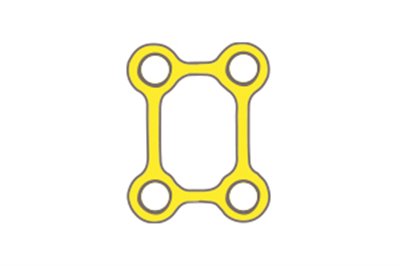

Rectangular Plate

2x2 Hole
M : 20.130.04 / L: 20.330.04

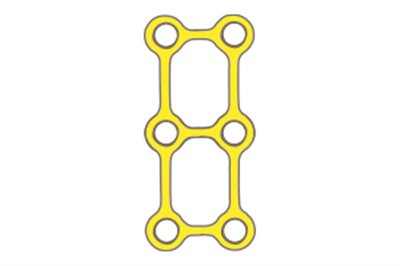

Rectangular Plate

3x2 Hole
M : 20.130.06 / L: 20.330.06

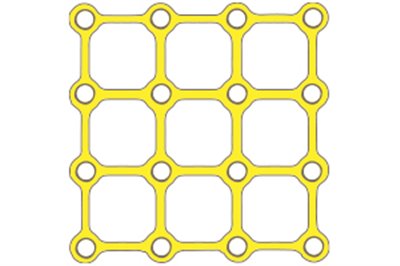

Quadro Plate

4x4 Hole
M : 20.120.16 / L: 20.320.16

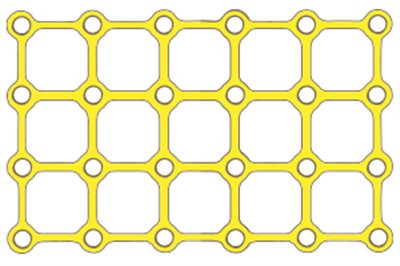

Quadro Plate

6x4 Hole
M : 20.120.24 / L: 20.320.24

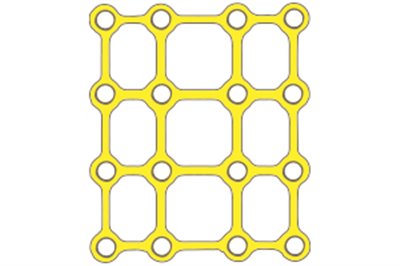

Rectangular Plate

4x4 Hole
M : 20.130.16 / L: 20.330.16

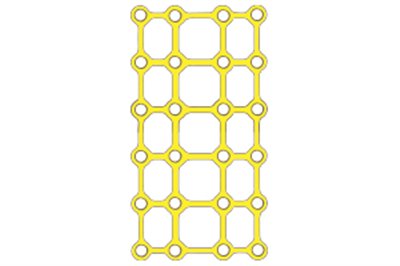

Rectangular Plate

6x4 Hole
M : 20.130.24 / L: 20.330.24


MINI - Bone-Screws 2.0 System

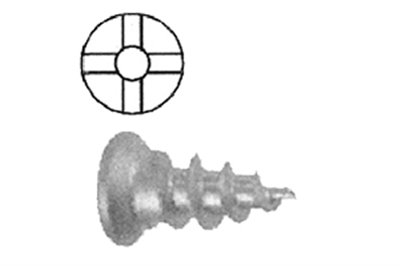

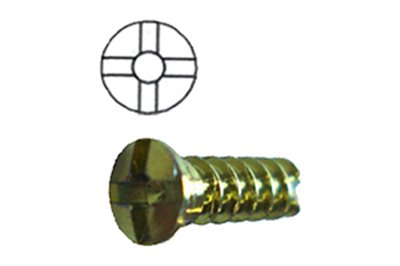

Cross - Drive - Screw (10/PK)

2,0 x 4 mm - 2,0 x 22 mm

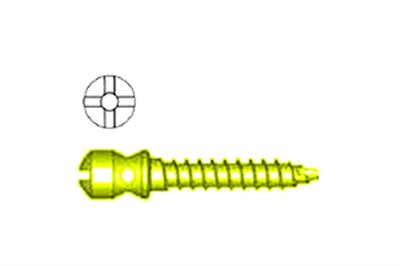

Cross - Drive - Screw (10/PK) Cross - Drive IMF Screw (1/PK)

2,0 x 8 mm - 2,0 x 14 mm


ESD - Easy - Self - Drilling - Screw

Cross-Drive (5/PK)

2,0 x 11 / 9 / 7 / 5 mm

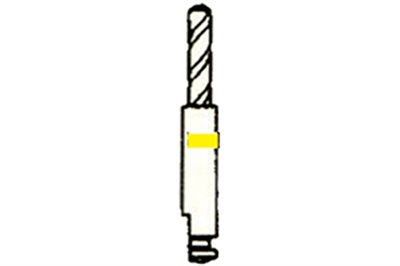

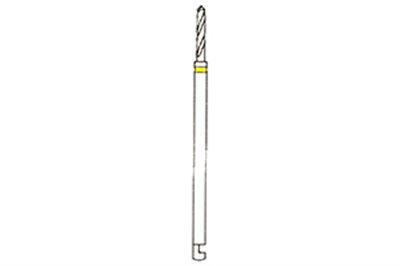

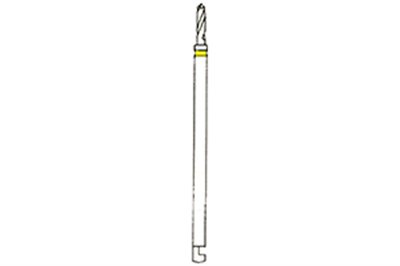

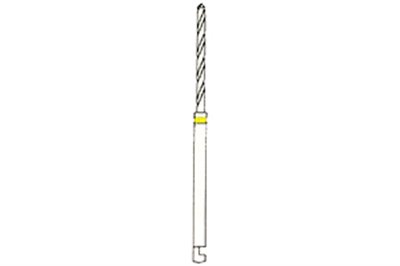

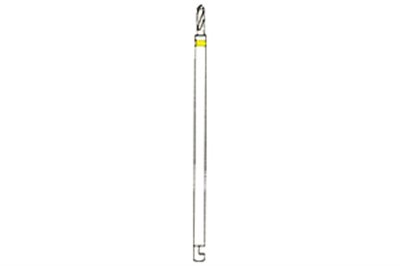

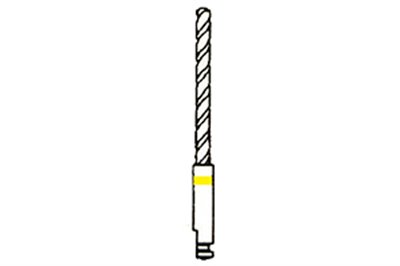

Twist Drill

1,5x20mm / 7mm Stop
dental plug / 20.854.07

Twist Drill

1,5x33mm / 20mm Stop
dental plug / 20.854.20

Twist Drill

1,5x50mm / 5 mm Stop
Stryker plug / 20.850.05

Twist Drill

1,5x50mm / 7 mm Stop
Stryker plug / 20.850.07

Twist Drill

1,5x50mm / 10 mm Stop
Stryker plug / 20.850.10

Twist Drill

1,5x50mm / 20 mm Stop
Stryker plug / 20.852.50

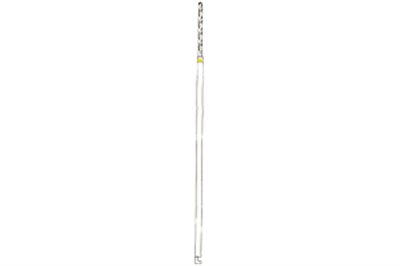

Twist Drill

1,5x105mm / 20 mm Stop
Stryker plug / 20.852.90


Instrumentation 1.2 System

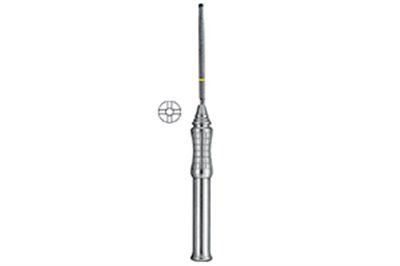

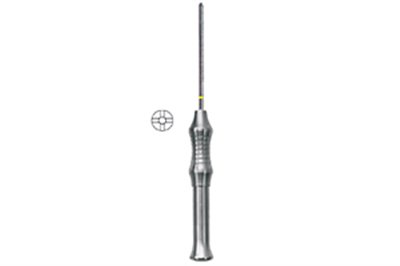

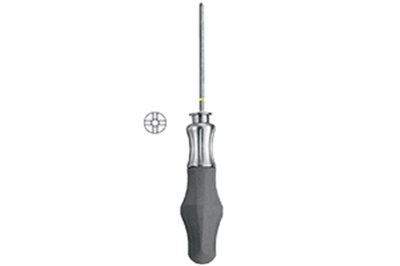

Screwdriver

removable blade
CROSS Drive / 20.802.20

Screwdriver

removable blade
CROSS Drive / 20.804.20

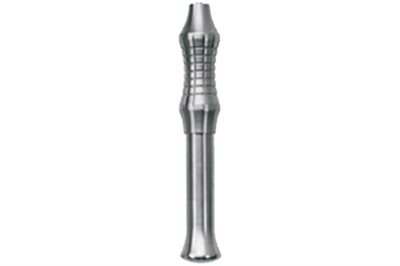

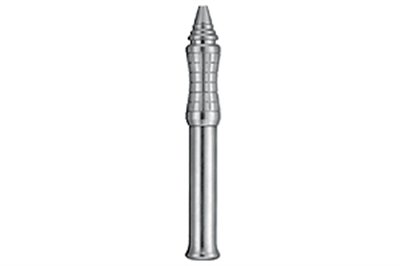

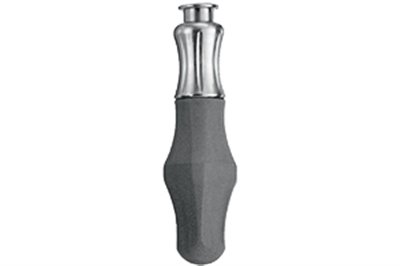

Handle

removable
20.815.01

Handle

20.815.02

Screwdriver

removable blade / dental plug
CROSS Drive / 20.804.22

Handle

removable blade
dental plug / 20.815.03

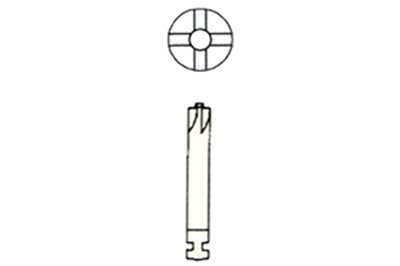

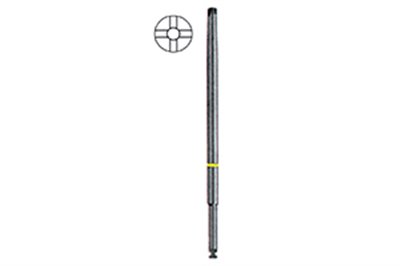

Blade

Contra-Angle / dental plug
CROSS Drive / 20.806.19

Blade

dental plug
CROSS Drive / 20.802.22

BladeHolding Device

20.816.22


Instrumentation 1.2 System

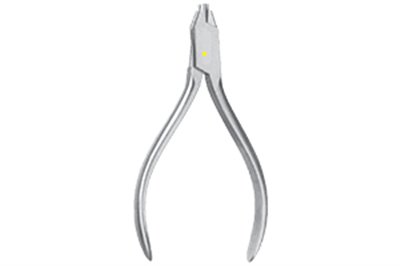

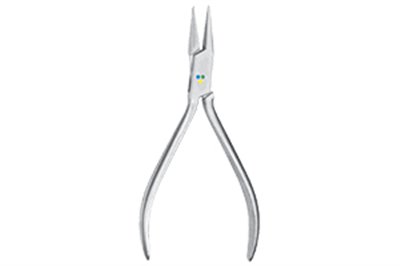

Plate Bending Plier

12,5 cm
12.820.12

Aderer mod. Bending Plier

12,5 cm
20.822.13

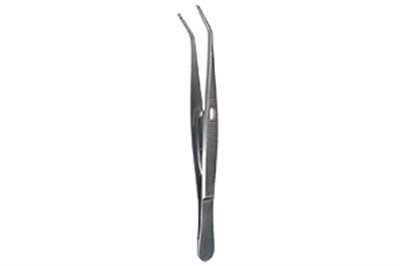

Plate/Screw Holding-Forceps

15,5cm
20.822.18

Depth Gauge

21,5cm
20.830.21

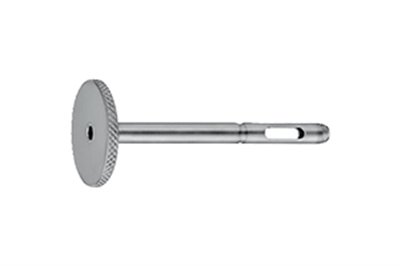

Handle for transbuccal

20.840.01

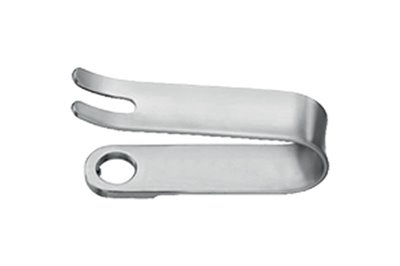

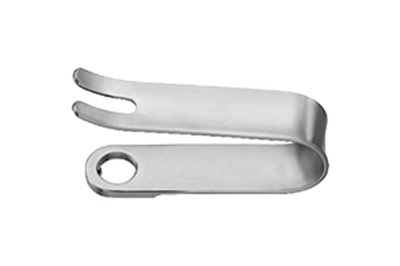

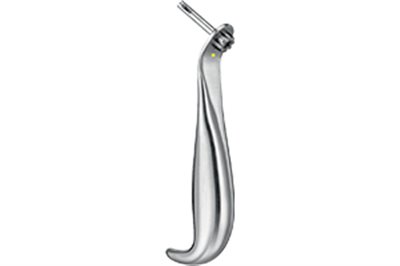

Cheek retraktor

20.840.04

Drill Guide

20.840.03

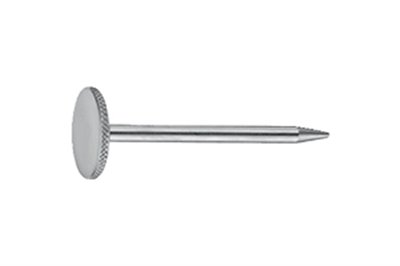

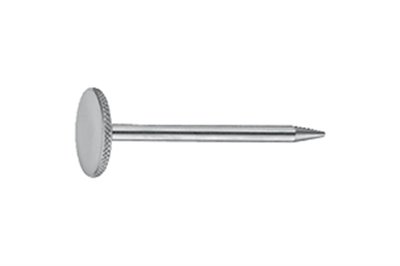

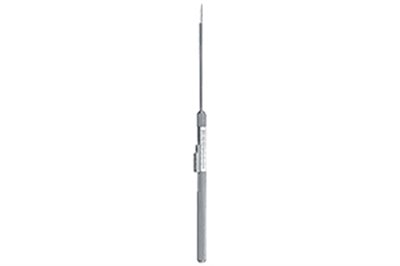

Trocar

20.840.02

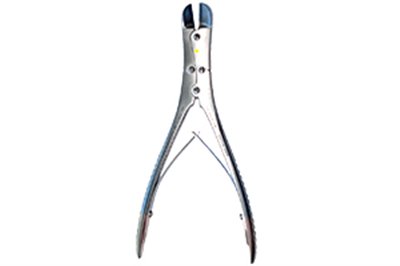

Plate Cutter TC

18,0cm
20.844.18

Handle for transbuccal

20.842.01

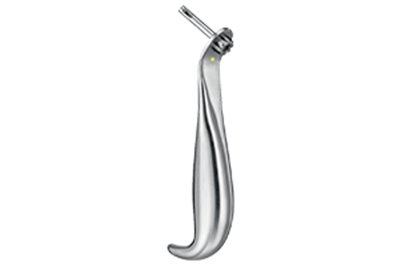

Cheek retraktor

20.842.04

Drill Guide

20.842.03

Trocar

20.842.02


Instrumentation 1.2 System

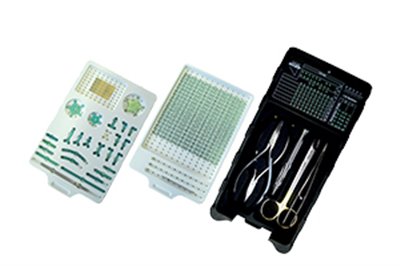

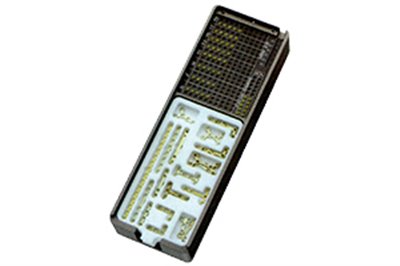

VARIO Implant and Instrument Tray

for 2.0 System (empty)
20.798.00

MINI Combo Implant

2.0 System (empty)
20.800.02

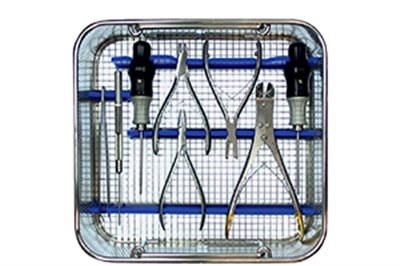

INSTRUMENT TRAY

2,0 System
20.802.01

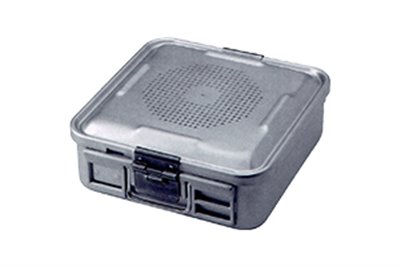

Sterilizing Container

285x280x150 mm
20.800.04
